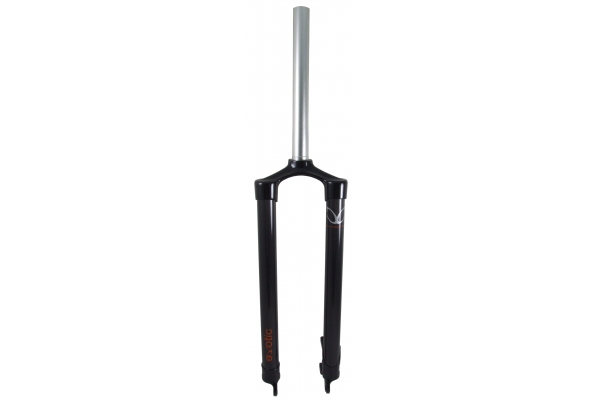

| eXotic UD Carbon Rigid MTB Fork - Disc Only Post Mount |
CC-F0M65 |
| Super sleek Uni-Directional (UD) black carbon stanchions 46.5cm |
|
Hover over large image to Zoom in+
|
29er
For 29er 700c wheels
Stunning flagship UD carbon mountain bike fork with 7075 Al steerer, carbon fibre tube stanchions and forged 6061 Al dropouts.
This fork is disc brake specific and has a Post Mount.
Rigorously tested to EN and DIN standards
| Length |
46.5cm / 29er (the length of the fork is measured from the centre of the hub to the top of the crown) |
| Brake Mount |
Disc Specific, Post Mount |
| Steerer Diameter |
1 1/8 inch (threadless ahead steerer) |
| Steerer Material |
7075 Al |
| Uncut steerer length |
265mm |
| | |
Offset/Rake |
42mm |
| Diameter of leg tubes |
34mm |
| | |
Width between dropouts |
100mm |
| Width of fork brace |
83mm |
| | |
Crown to underside of brace |
25mm |
Options and weight: VIEW FORK SELECTOR
Recommended rider weight limit: 97.5kg (215lbs)
| Bike Type | Wheel
Size | Material | Brake
Mounts | Steerer | Length*¹ | Geom'
Corrected for*² | Weight | Code | Additional |
| MTB | 26 in / 29er / 700c | UD Carbon | PM Disc | 1.1/8 in 7075 Al | 46.5cm | 0 to 100mm (0 to 4 in) for 29er *3 | 0.79Kg (1.7 Lbs) | CC-F0M65 | |
| see full table for notes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Super sleek Uni-Directional (UD) black carbon stanchions |
| Online Price: £98.99 (45% Off) |
|
|
|
|
|
|
|
|
| Super sleek Uni-Directional (UD) black carbon stanchions |
| Online Price: £104.39 (42% Off) |
|
|
|
|
|
|
|
|
| Super sleek Uni-Directional (UD) black carbon stanchions |
| Online Price: £113.39 (37% Off) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
