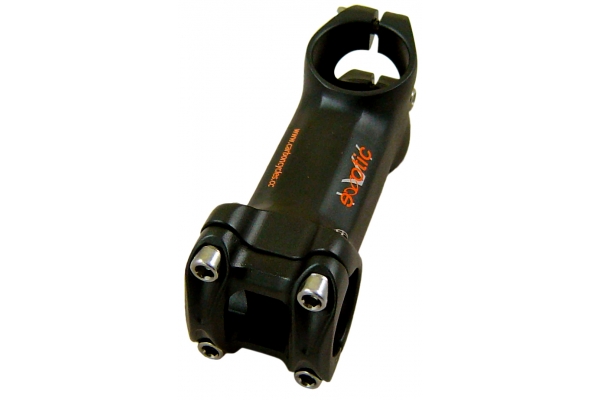

| eXotic Meta F Stem |
CC-M112508 |
| 3-D Forged 2014 T6 Al Stem Bore: 25.4mm, Ext: 80mm |
|
Hover over large image to Zoom in+
|
25.4, 80mm
Opposing steerer clamp bolts help to even out clamping loads, allow easier fitting by tightening one side & then the other and can offer better knee clearance.
The four bolt chamfered faceplate is designed to reduce stress at the edge of the clamp which is great for carbon bars.
Featuring face plate cut out and steerer tube window.
Specifications:
28.6mm (1 1/8 Inch) internal diameter
Bore diameter 25.4mm or 31.8mm
Extension: 60mm or 80mm
3-D forged 2014 T6 Alloy
+/-6 degree angle
Rear Steerer Clamp Cutout: Oval 14mm x 22mm
Face Plate Cutout: 22mm x 17mm
Total Weight: 120g (CC-M112508 incl 6 x high grade M5 stainless steel bolts @24g)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3-D Forged 2014 T6 Al Stem Bore: 25.4mm, Ext: 60mm |
| Online Price: £19.24 (45% Off) |
|
|
|
|
|
|
|
|
| 3-D Forged 2014 T6 Al Stem Bore: 31.8mm, Ext: 60mm |
| Online Price: £19.24 (45% Off) |
|
|
|
|
|
|
|
|
| 3-D Forged 2014 T6 Al Stem Bore: 31.8mm, Ext: 80mm |
| Online Price: £19.24 (45% Off) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
