| eXotic Carbon Monocoque Road Race Fork |
CC-F08 |
| Monocoque Carbon Fibre Design |
|

Hover over large image to Zoom in+
|

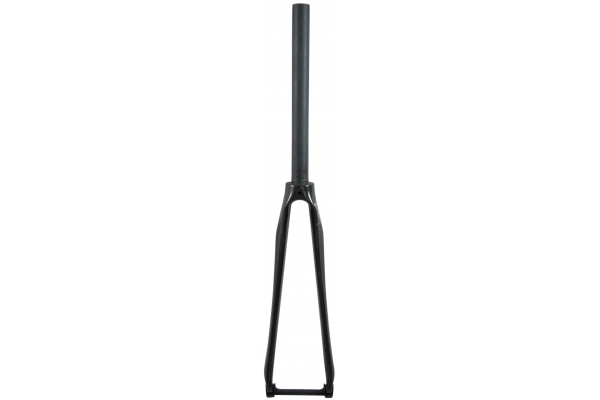

Stunning road race fork featuring aerodynamic full carbon monocoque crown & blades, and carbon steerer
Integrated headset outside diameter: 50mm
Rigorously tested to EN and DIN standards
Steerer: 1 1/8 inch
Offset/Rake: 42mm
For the carbon steerer use an expansion plug. See CC-E03, CC-E04, CC-E05, CC-E06
To actually see a section of your carbon steerer on your finished bike, pair up your fork with a eXotic Matrix F series stem featuring a steerer tube cut-out window on the steerer clamp. With Matrix F (and Meta F) stems, the rider sees a small oval section (aprox 22mm x 14mm) of the steerer tube at the rear of the stem.
Length measured from centre of hub to top of crown 375mm
Options and weight: VIEW FORK SELECTOR
| Bike Type | Wheel
Size | Material | Brake
Mounts | Steerer | Length*¹ | Geom'
Corrected for*² | Weight | Code | Additional |
| Road | 700c | Carbon | Calliper | 1.1/8 in Carbon | 37.5cm | NA | 0.35Kg (0.8 Lbs) | CC-F08 | Race |
| see full table for notes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
