Will a shorter rigid fork ruin a bike's geometry?

by support Mon Dec 8, 2025

Let's look at an example

Rigid fork vs 120 mm suspension fork: why a 490 mm fork can be "correct" for a 29er

Many riders consider replacing a 120 mm suspension fork on a 29er with a rigid fork. During this process, it is common to notice a difference between the measured axle-to-crown (A-C) length of the old suspension fork and the new rigid fork. For example, a suspension fork may measure around 525 mm A-C, while a rigid fork designed for the same frame measures around 490 mm. On paper this appears to be a large 35 mm difference, but in practice it is usually exactly what the frame is designed for.

What does "suspension-corrected" mean?

Rigid forks intended to replace suspension forks are commonly described as suspension-corrected. This means:

The rigid fork is longer than a traditional non-corrected rigid fork.
Its fixed A-C length is chosen to match the effective length of a suspension fork under sag, not fully extended on a workstand.
Frame geometry (head angle, bottom bracket height, wheelbase) remains close to the designer's intent when the bike is actually being ridden.

Suspension forks move through their travel. Rigid forks do not. Suspension-corrected design bridges that difference so that swapping from suspension to rigid does not drastically alter how the bike fits or handles.

Sag: the missing piece in fork length comparisons

A key concept is sag. When a rider sits on a bike, the suspension fork compresses into its travel. Many modern mountain bike forks are set up with around 20 to 30 percent sag for normal trail riding.

For a 120 mm travel fork, 25 percent sag corresponds to about 30 mm of compression. That means:

Unloaded A-C length might be approximately 525 mm.
Under sag, the effective A-C length is closer to 525 mm - 30 mm, which is about 495 mm.

A suspension-corrected rigid fork for a 29er designed around 120 mm travel often has an A-C length around 490 mm. This rigid fork never sags, so its riding height is always 490 mm. Compared to the sagged 495 mm of the suspension fork, the real-world difference in height at the front of the bike is only about 5 mm.

In other words, the rigid fork's shorter A-C number on the spec sheet is intentional. It accounts for sag, which the raw measurement of the suspension fork does not.

Why the tape measure can be misleading

When a mechanic or rider compares fork lengths on the workstand, they are usually looking at:

Suspension fork: fully extended, no rider weight, for example 525 mm A-C.
Rigid fork: fixed length, for example 490 mm A-C.

This leads to the impression that the rigid fork will drop the front of the bike by the full 35 mm. On the trail, however, the suspension fork is not fully extended; it is partway into its travel due to sag. The frame and rider experience something much closer to 495 mm vs 490 mm, not 525 mm vs 490 mm.

This difference between "on-the-stand" measurements and "on-the-trail" reality is the source of many concerns about bottom bracket height and frame compatibility when, in fact, the fork and frame are usually well matched.

Bottom bracket height and head angle in practice

Switching from a sagged 120 mm suspension fork to a 490 mm suspension-corrected rigid fork typically has the following effects:

Bottom bracket height: usually changes by only a few millimetres compared to the sagged position with the suspension fork. This is far less than the 35 mm suggested by unloaded measurements.
Head angle: steepens slightly, making steering a little quicker and more cross-country like, but normally within the range that frame designers expect and tolerate.
Wheelbase and front centre: shorten marginally, which can sharpen handling and climbing precision.

For many riders and frames, these changes are small and entirely manageable. Some riders actually prefer the slightly sharper feel and the lower weight and maintenance of a rigid front end.

A simple geometry check method

A straightforward way to understand the real-world geometry change is to measure a bike in its ridden state.

With the suspension fork installed, set the fork to the normal air pressure or spring preload used on the trail.
Place the bike on level ground.
Have the rider adopt a typical riding position so the fork sags into its travel.

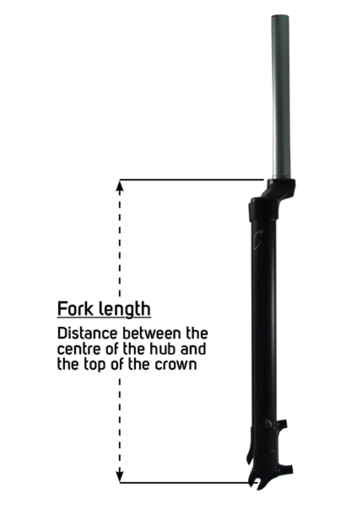

Measure the A-C length from the centre of the front axle to the base of the crown while the rider remains on the bike.
Compare this sagged A-C length to the rigid fork's A-C (for example, 490 mm).

This measurement often reveals that the sagged suspension fork is very close to the rigid fork's length. That is the essence of suspension correction.

Common misunderstandings

Several recurring misunderstandings appear whenever rigid forks are discussed:

Comparing only unloaded A-C values: ignoring sag exaggerates the apparent change in geometry.
Assuming every millimetre is critical: small differences (on the order of 5 to 10 mm) in fork length generally produce modest geometry changes that most riders adapt to easily.
Expecting zero change: any swap from suspension to rigid will feel different. The goal of a suspension-corrected fork is not identical behaviour, but a geometry that remains within a sensible range for the frame.

Other rigid fork producers use very similar A-C lengths for forks intended to replace 100 to 130 mm suspension units on 29ers. This convergence reflects a shared understanding of sag and real-world geometry rather than a coincidence.

Choosing a rigid fork for a 29er frame

When selecting a rigid fork for a 29er that originally used a 120 mm suspension fork, useful guidelines include:

Look for a fork described as suspension-corrected for the intended wheel size and travel.
Check that the A-C length is in the expected range (for 29er and 120 mm applications, values around 490 mm are common).
Remember that the bike's geometry is based on the sagged length of the original fork, not the unloaded catalogue number.

By working with sagged measurements and suspension-corrected specifications, riders and mechanics can evaluate compatibility with much more confidence than by comparing only the raw unloaded A-C values.

Summary

A 490 mm suspension-corrected rigid fork for a 29er designed around a 120 mm suspension fork is not "too short" simply because the old fork measures about 525 mm A-C on a workstand. Once sag is accounted for, the effective riding height of the suspension fork is usually very close to the rigid fork's length.

Understanding sag, axle-to-crown length and suspension-corrected design makes it clear that such rigid forks are specifically engineered to preserve frame geometry within a sensible range, while offering the simplicity, steering precision and low maintenance that many riders seek when going rigid.
