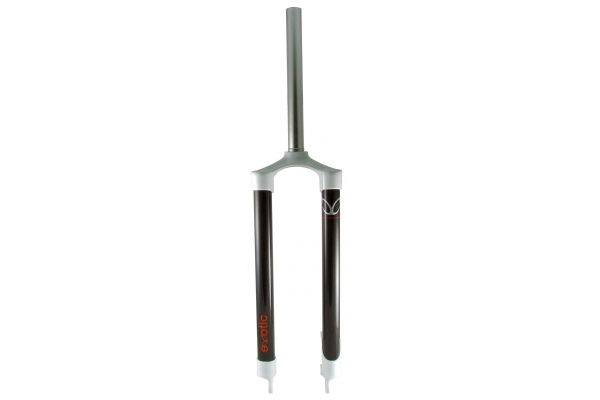

eXotic UD Carbon Rigid MTB Fork - Disc Only Post Mount
Super sleek Uni-Directional (UD) black carbon stanchions

Hover over large image to Zoom in+

^^^^^^^^^^^
Total of 7 images
42.5cm 26in Wheel
44.5cm 26in Wheel
44.5cm White 26in Wheel
46.5cm 650b 29er 700c
Length:
42.5cm 26in Wheel

Stunning flagship UD carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in

Carbon (UD)  PM Disc  1.1/8 in 7075 Al  42.5cm  0mm, 80mm  0.77Kg (1.7 Lbs)  CC-F0M25
see full table



UPC: 5055429910558
Sponsorships and Product Reviews
Length:
44.5cm 26in Wheel

Stunning flagship UD carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in

Carbon (UD)  PM Disc  1.1/8 in 7075 Al  44.5cm  100mm  0.78Kg (1.7 Lbs)  CC-F0M45
see full table



UPC: 5055429910558
Sponsorships and Product Reviews
Length:
44.5cm White 26in Wheel

Stunning flagship UD carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in

Carbon (UD)  PM Disc  1.1/8 in 7075 Al  44.5cm  100mm  0.78Kg (1.7 Lbs)  CC-F0M45W  White
see full table



UPC: 5055429910558
Sponsorships and Product Reviews
Length:
46.5cm 650b 29er 700c

Stunning flagship UD carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in
650b
29er / 700c

Carbon (UD)  PM Disc  1.1/8 in 7075 Al  46.5cm
26 in:130mm
650b:100mm, 120mm,
29er / 700c:0mm, 80mm,
100mm

0.79Kg (1.7 Lbs)  CC-F0M65
see full table



UPC: 5055429910558
Sponsorships and Product Reviews

Ship To

code
CC-
F0M45W
44.5cm White 26in Wheel



US $194.59 Out of Stock

F0M25
42.5cm 26in Wheel



US $156.69
In Stock in the USA


F0M45
44.5cm 26in Wheel



US $161.39

F0M65
46.5cm 650b 29er 700c



US $195.39
