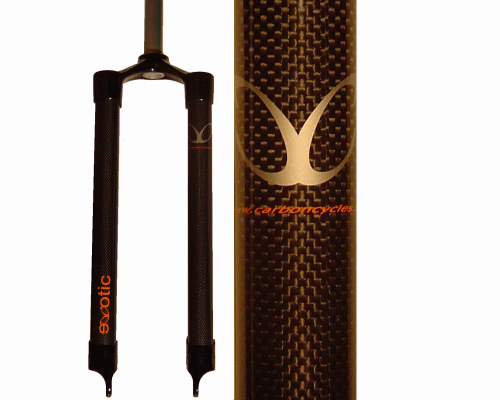

eXotic Carbon Rigid MTB Fork - Disc Only


Super sleek carbon fiber stanchions
Length:
28.8cm 20in Wheel

For 20in wheels; for example, for a recumbent, folding or childs bike

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific. For a V-brake compatible fork see CC-F0225 for carbon or CC-F0125 for Al.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Brake Specific
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
Recumbent  20 in

Carbon (3K)  IS Disc  1.1/8 in 7075 Al  28.8cm    0.75Kg (1.6 Lbs)  CC-F03-20  Folder
see full table


UPC: 5055429901969Scroll Down to Buy

More Reviews n Cool Stuff...
Length:
28.8cm 20in Wheel Long Steerer

With 522mm long uncut steerer for 20in wheels with ; for example, for a recumbent, folding or childs bike

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific. For a V-brake compatible fork see CC-F0225 for carbon or CC-F0125 for Al.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Brake Specific
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
Recumbent  20 in

Carbon (3K)  IS Disc  1.1/8 in 7075 Al 522mm  44.5cm  0mm, 80mm, 100mm  0.86Kg (1.9 Lbs)  CC-F03-20S522  Long Steerer
see full table


UPC: 5055429901969Scroll Down to Buy

More Reviews n Cool Stuff...
Length:
33.9cm 24in Wheel

For 24in wheels; for example, for a recumbent, folding or childs bike

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific.

Rigorously tested to DIN standards
Length: 33.9cm measured from center of hub to top of crown


Brake Mount  Disc Brake Specific
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Rider weight limit: 95kg (210lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
Recumbent  24 in

Carbon (3K)  IS Disc  1.1/8 in 7075 Al  33.9cm    0.77Kg (1.7 Lbs)  CC-F03-24  Folder
see full table


UPC: 5055429901969Scroll Down to Buy

More Reviews n Cool Stuff...
Length:
42.5cm 26in Wheel

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific. For a V-brake compatible fork see CC-F0225 for carbon or CC-F0125 for Al.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Brake Specific
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in

Carbon (3K)  IS Disc  1.1/8 in 7075 Al  42.5cm  0mm, 80mm  0.75Kg (1.6 Lbs)  CC-F0325
see full table


UPC: 5055429901969Scroll Down to Buy

More Reviews n Cool Stuff...
Length:
44.5cm 26in Wheel

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific. For a V-brake compatible fork see CC-F0225 for carbon or CC-F0125 for Al.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Brake Specific
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in

Carbon (3K)  IS Disc  1.1/8 in 7075 Al  44.5cm  100mm  0.76Kg (1.7 Lbs)  CC-F0345
see full table


UPC: 5055429901969Scroll Down to Buy

More Reviews n Cool Stuff...
Length:
44.5cm White 26in Wheel

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific. For a V-brake compatible fork see CC-F0225 for carbon or CC-F0125 for Al.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Brake Specific
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in

Carbon (3K)  IS Disc  1.1/8 in 7075 Al  44.5cm  100mm  0.76Kg (1.7 Lbs)  CC-F0345W  White
see full table


UPC: 5055429901969Scroll Down to Buy

More Reviews n Cool Stuff...
Length:
46.5cm 650b 29er 700c

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific. For a V-brake compatible fork see CC-F0225 for carbon or CC-F0125 for Al.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Brake Specific
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in
650b
29er / 700c

Carbon (3K)  IS Disc  1.1/8 in 7075 Al  46.5cm
26 in:130mm
650b:100mm, 120mm,
29er / 700c:0mm, 80mm,
100mm

0.77Kg (1.7 Lbs)  CC-F0365
see full table


UPC: 5055429901969Scroll Down to Buy

More Reviews n Cool Stuff...
 code
CC-
Length Price
  F0345
44.5cm 26in Wheel



US $140.01
In Stock in the USA


  F0325
42.5cm 26in Wheel



US $135.42
In Stock in the USA


  F03-24
33.9cm 24in Wheel



US $140.27

  F03-20
28.8cm 20in Wheel



US $140.27
In Stock in the USA


  F03-20S522
28.8cm 20in Wheel, Long Steerer



US $142.29

  F0365
46.5cm 650b 29er 700c



US $169.59
In Stock in the USA


  F0345W
44.5cm White 26in Wheel



US $169.84
In Stock in the USA
